Item specifics
  • Model Number: IPC-9800
  • Power output: Output 5V power for phone as power bank
  • digital Signal in: support 1080P,720P
  • Model: IPC-9800
  • LCD adjustment: Brightness, Contrast, Saturation adjustable
  • DC12V power output: Output DC12V/2A power for camera
  • Country/Region of Manufacture: China
Product Description

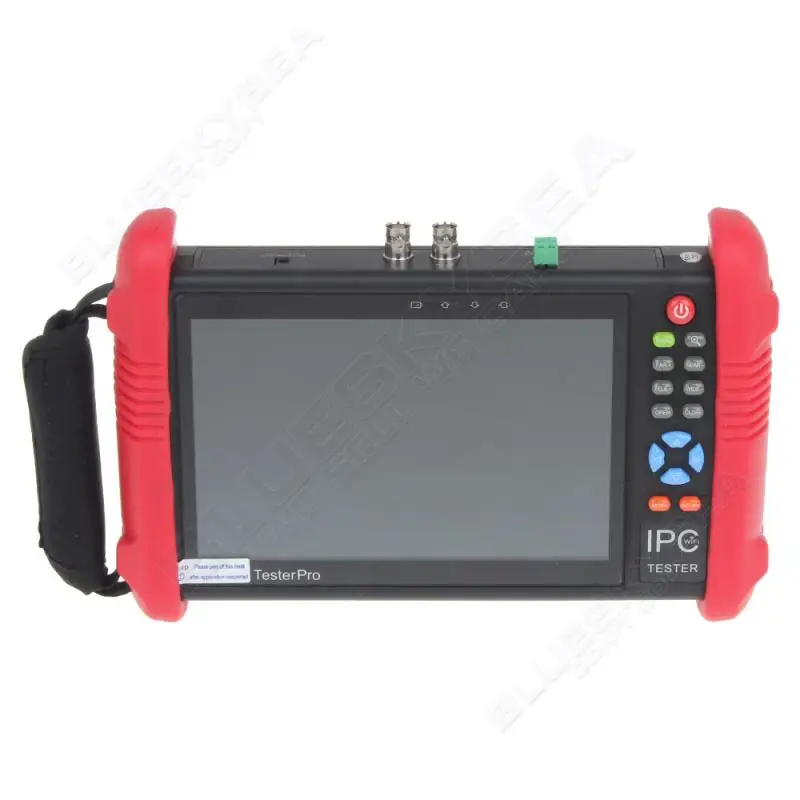

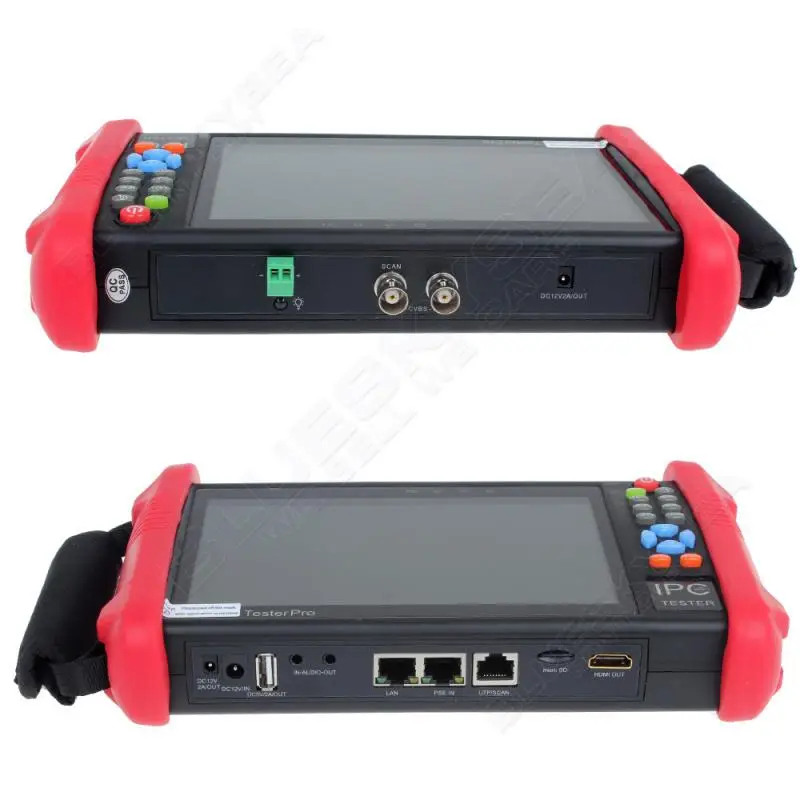

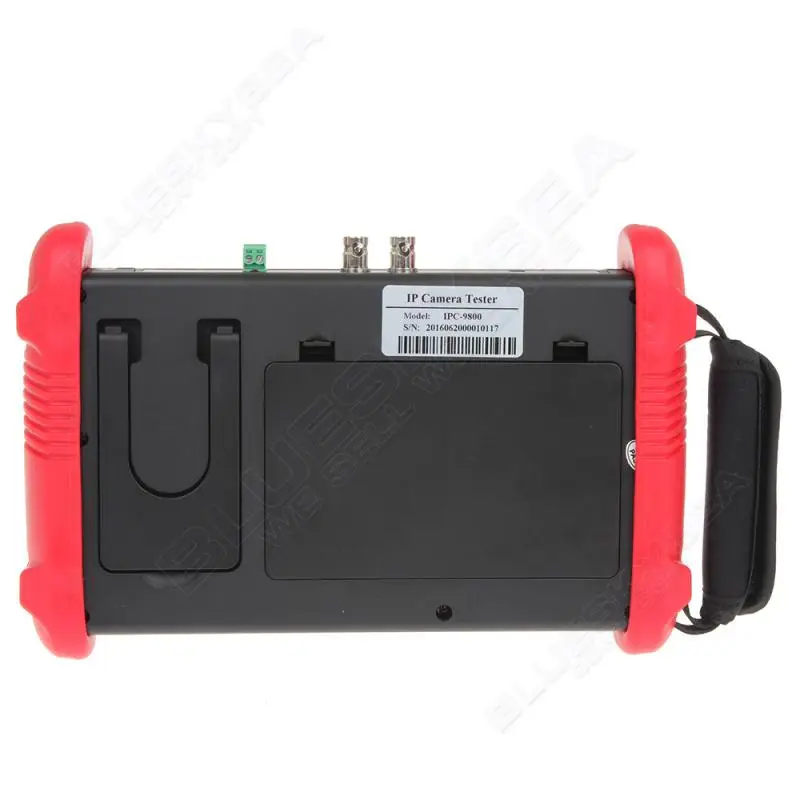

IPC9800 7" Touch Screen CCTV Analogy Video ONVIF IP Camera Wifi Tester POE 12V Output




This model IPC-9800,can support IP camera & Analogy camera test!

Quick buying guide for optional function on IPC9800 Tester

Model CVBS IP Camera HD-AHD HD-TVI HD-CVI HD-SDI
IPC-9800 Yes Yes
IPC-9800ADH Yes Yes Yes Yes Yes
IPC-9800ADHS Yes Yes Yes Yes Yes Yes


IP camera Tester IPC-9800 series:

7 inch capacitive touch screen / ONVIF /Analog camera/ WIFI /12V 2A Power output / 5V 2A power bank / DC48V PoE power supply /HDMI output/Video level meter/ IP camera viewer /PTZ control /Ping test/Link test/Cable tracer /IP discovery, Auto -search the whole network segment IP / Rapid ONVIF, Auto-login and display the camera image, Support more than 80 IP camera brands test (Hikvision, Dahua, Honeywell, Samsung etc)

7 inch Touch Screen IP camera tester is for maintenance and installation of IP camera and Analogue camera ,display  analogue camera image ,PTZ control, easy to use and operate . Built in network testing tools (IP address search, PING etc), quickly check the IP camera problem. Cable scan, easy to check the network cable, BNC cable problem

New IP camera tester normal working time lasts 16 hours, built in WIFI,as well as test Wireless IP ,Analog camera ,12V 2A power output for camera ,DC48V PoE power supply,5V 2A power output(as a power bank 13000mAh),HDMI output, Audio input and output, Network bandwidth testing, OSD menu rotates in 180 angle,OSD menu can be rotated in 180 angle by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing.

   9800 (13).jpg
   9800 (1).jpg
 9800 (3).jpg
 9800 (4).jpg

Apply for:

CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera IP camera testing
Video transmission channel testing
PTZ controller

 9800 (8).jpg
   9800 (9).jpg
 9800 (10).jpg
 9800 (11).jpg
 9800 (6).jpg
   9800 (5).jpg

IPC-9800 Module Features:

1. 7 inch IPS HD full view capacitive touch screen ,1280*800 resolution
2. Capacitive touch screen ,OSD menu,
3. Touch screen and key dual-way operation
4. Built-in WIFI, wireless network camera test
5. HD-AHD/CVI/TVI camera test . snapshot ,video record and playback  (*Optional)
6. IP discovery, do not need to know the first two digits of camera\'s IP address , it can auto-scan the whole network segment IP, and auto-modify tester\'s IP address NEW
7. Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.
8. Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera. NEW
9. DH test tool app is design for Dahua Camera image test, support modify IP, user name and password parameters.
10. ONVIF IP camera test, support 2592*1520
11. Support FHD 1080P camera input
12. SDI camera test (*Optional)
13. Digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback
14. Support ONVIF, combine with 80 above brand camera (Dahua,Haikang,KEDA,Samsung,Hikvision,Tiandy camera)
15. If IP camera manufacturers can offer Video Management Software that compatible with mobile phone , install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer.
16. OSD menu rotates in 180 angle
17. Display real resolution of the IP camera images
18. Video screen snapshot ,video recording ,files named and save, easy to find
19. Support network PTZ controller (ONVIF)
20. Support 1080P HD video files and MKV/MP4 media files play
21. PTZ controller ,Photograph, Video record, Record playback
22. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement * (Optional)
23. Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)
24. Visual fault locator , to test fiber\'s bending and breakage * (Optional)
25. TDR cable test, test cable length and short-circuit * (Optional)
26. Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing (Optional)
27. Color bar generator, analog video color bar and testing image output
28. POE voltage measurement, PING test ,IP address scan, port flashing etc
29. PoE DC48V power output,Max power 24W
30. 12V /2A power output
31. 5V 2A power output as the power bank
32. HDMI output, 1920*1080P Resolution
33. Audio in /out
34. LED lamp, calculators, music players and other application tools
35. Support customers self update software
36. Lithium Ion Polymer Battery, working time lasts 16 hours

   B1422 IPC9800 (6).jpg

 B1422 IPC9800 (2).jpg
   B1422 IPC9800 (3).jpg

Spefication:

Model IPC-9800[*]models optional
Display 7 inch 1280*800 IPS HD full view capacitive touch screen ,more clearly image display; touch operation, easy to use .
Network port 10/100M auto adapt,RJ45
IP discovery auto-scan the whole network segment camera IP
Rapid ONVIF search camera quickly, auto log in and display image from the camera, activate Hikvision camera
Hik test tool activate Hikvision camera,Camera image test, support modify IP, user name and password etc parameters .
DH test tool Dahua Camera image test, support modify IP, user name and password etc parameters
SDI camera test (Optional) * 1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 60fps /1080i 60fps
TVI camera test *(Optional) * Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable
CVI camera test (Optional) * Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable
AHD camera test* (Optional) * Support AHD2.0, Support resolution 1080P 25fps,30fps /720p 25fps,30fps , camera OSD menu control over coaxial cable
WIFI Built in WIFI,speeds150M,display wireless camera image
IP camera type ONVIF,ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,Aipu-waton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080O,WEISKY IPC camera etc. Customized welcome
Video input/output 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
Video Level Test: Video signals measured in IRE or mV
Video level meter PEAK video signal level, SYNC signal level, Color bar chroma level measurement
Zoom Image Support Analog camera and IP camera image zoom /move
Snapshot, Image Screen snapshot, record ,save ,view and record and play back
Video record and playback
HDMI output 1 channel HDMI output,support 1920*1080P
12V/2Apower output Output DC12V/2A power for camera
5V power output 5V 2A power output,as a Power bank
PoE power output 48V PoE power output,Max power 24W
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
PTZ control Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
UTP Cable tester Test UTP cable connection status and display on the screen. Read the number on the screen
Data monitor Captures and analyzes the command data from controlling device,also can send hexadecimal
Network test IP address scan, link test, Ping test, Quickly search the connection IP camera and other device\'s IP address
Cable scan* (Optional) * Search the cable by the audio signal
PoE test Measurement POE switch or PSE power supply voltage and cable connection status
Digital Multi-meter (optional)* AC/DC Voltage,AC/DC current,Resistance,Capacitance,Data hold,Relative measurement,Continuity testing . Testing speed: 3 times/ seconds,Data range -6600~+6600.
Optical power meter (Optional)* Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm
Power range(dBm) :-70~+10dBm
Visual fault locator (optional)* Test fiber\'s bending and breakage ( SM and MM fiber)
TDR cable test (optional) * Cable length and short circuit measurement(BNC cable, Coaxial cable, Cat5/6, telephone cable)
POWER
External power supply DC 12V 2A
Battery Built-in 7.4V Lithium polymer battery ,6500mAh
Rechargeable After charging 7~8 hours, normal working time 10 hours
Parameter
Operation setting Capacitive touch screen, OSD menu,Chinese/English
Auto off 1-30 (mins)
General
Working Temperature -10°C---+50°C
Working Humidity 30%-90%
Dimension/Weight 231mm x 172mm x 52mm / 1.26Kg


 B1422 IPC9800 (4).jpg

Package contents:

1x IPC9800 Tester
1x 5800mAh battery(inside tester)
1x Power adapter
1x 12v Output cord
1x BNC Cable
1x RS485 Cord
1x Audio test cord
1x No 255 Cable tester
1x 8Gb card(plug into tester already)
1x Carrying bag
1x User manual

   B1422 IPC9800 (5).jpg
