  • Model Number: RTU5025
  • Usage: Personal
Product Description




















Description

RTU5025 GSM Remote Gate/Door Opener:
The RTU5025 is an upgraded version of famous RTU5015 gate opener, a very simple device which can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID),well used on door access, gate control, remote switching, or car parking systems. Actually the RTU5025 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE phone call from your mobile or fixed line telephone.
PC software for programming via USB,remote server system over TCP/IP supported*,users can easily download the access historical data anywhere anytime.

Digital Inputs:
One Digital input for motion sensor or other sensors to protect your door and windows,SMS alert to owner immediately when triggered;
One Digital input special for secure door and automatically armed when door closed, SMS alert to owner immediately when door opened illegally.
How RTU5025 Works?
1. Put a Mobile SIM Card into the Device.
2. Setting by PC software.(WindowsXP, Win7, Win8)
3.Call the RTU5025 by Authorized phone number,  Relay Switch ON/OFF to remote control the Gate/Door or other Machine OPEN/CLOSE!
4. Download the access historical data by PC software via USB port.

Door status checking alarm and remote control:
1.Connect wired detector/sensors in tothe DIN1/2.
2.When detector/Sensors trigger,RTU5025 send Alarm SMS Text to the 1st ~6th users automatically.
3.According to the Alarm SMS, users make a decision to CALL RTU5025 Switch Relay ON or OFF.

GSM Gate Opener RTU5025 well used for:
Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call.
Intrusion security alarm,remote ON/OFF motors, lights, pumps,generators,valves and machines.
Home and garage owner, Business company, Hotel, Warehouse, Parking place, Hospital, And other place need remote switching ON/OFF applications. eg. Pump, Motor, Valve, or any need NC/NO contact devices.

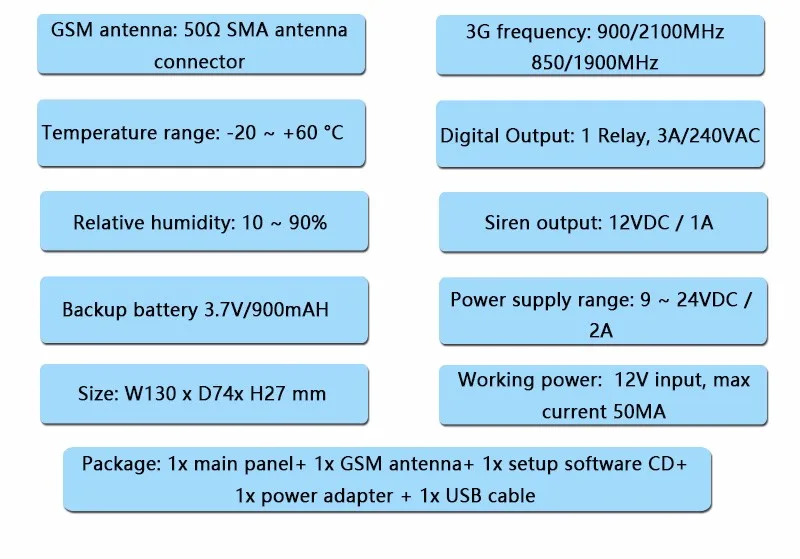

Specification
Name: GSM Gate Opener
GSM frequency: 850/900/1800/1900MHz
3G frequency: 900/2100MHz 850/1900MHz
Digita Input: 2 inputs, one for access control
Digital Output: 1 Relay, 3A/240VAC
Siren output: 12VDC / 1A
Power supply range: 9 ~ 24VDC / 2A
Working power: 12V input, max current 50MA
SIM Card: Supporting 3V SIM Card
GSM antenna: 50Ω SMA antenna connector
Temperature range: -20 ~ +60 °C
Relative humidity: 10 ~ 90%
Backup battery 3.7V/900mAH

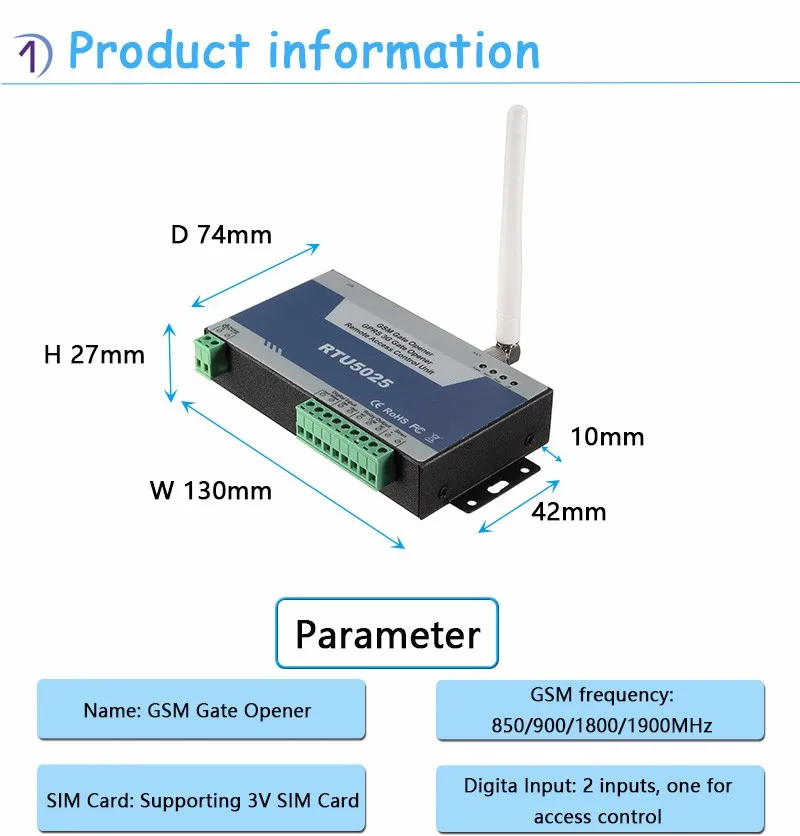

Size: W130 x D74x H27 mm

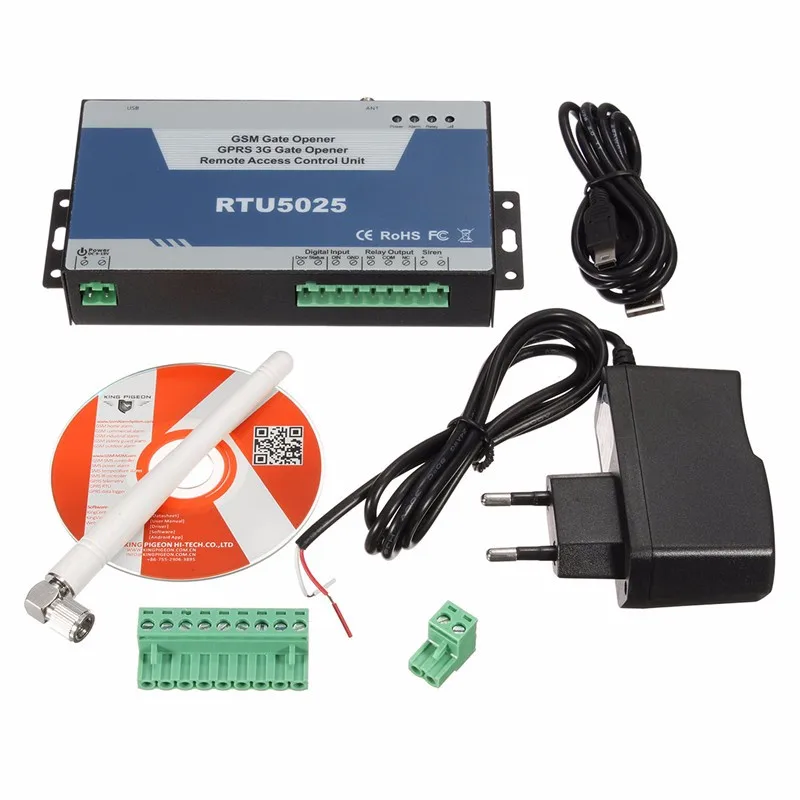

Package included
1x main panel+ 1x GSM antenna+ 1x setup software CD+ 1x power adapter + 1x USB cable

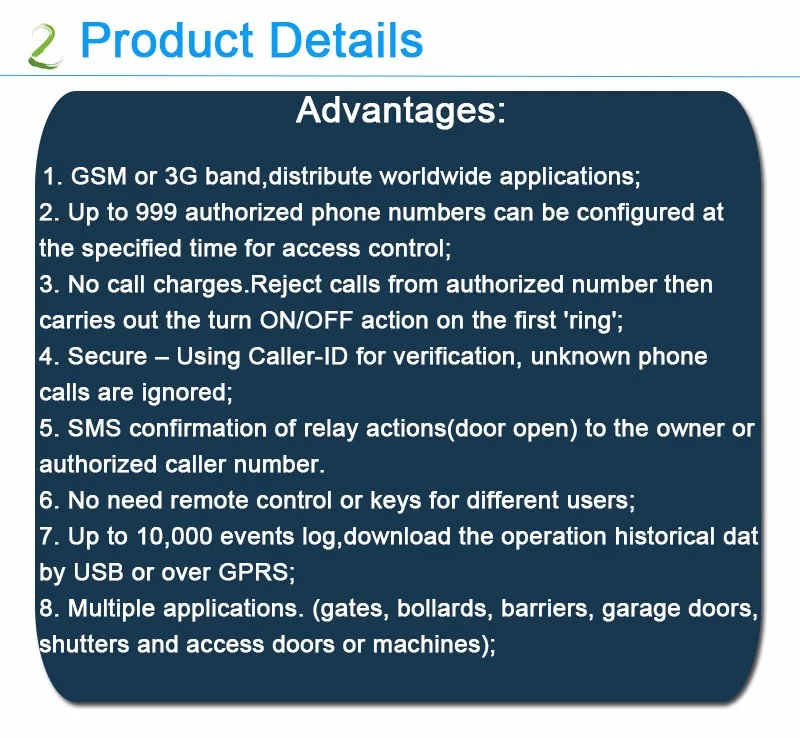

Advantages:
GSM or 3G,distribute worldwide applications;
Up to 999 authorized phone numbers can be configured at the specified time for access control;
No call charges.Reject calls from authorized number then carries out the turn ON/OFF action on the first \'ring\';
Secure – Using Caller-ID for verification, unknown phone calls are ignored;
SMS confirmation of relay actions(door open) to the owner or authorized caller number.
No need remote control or keys for different users;
Up to 10,000 events log,download the operation historical dat by USB or over GPRS;
Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

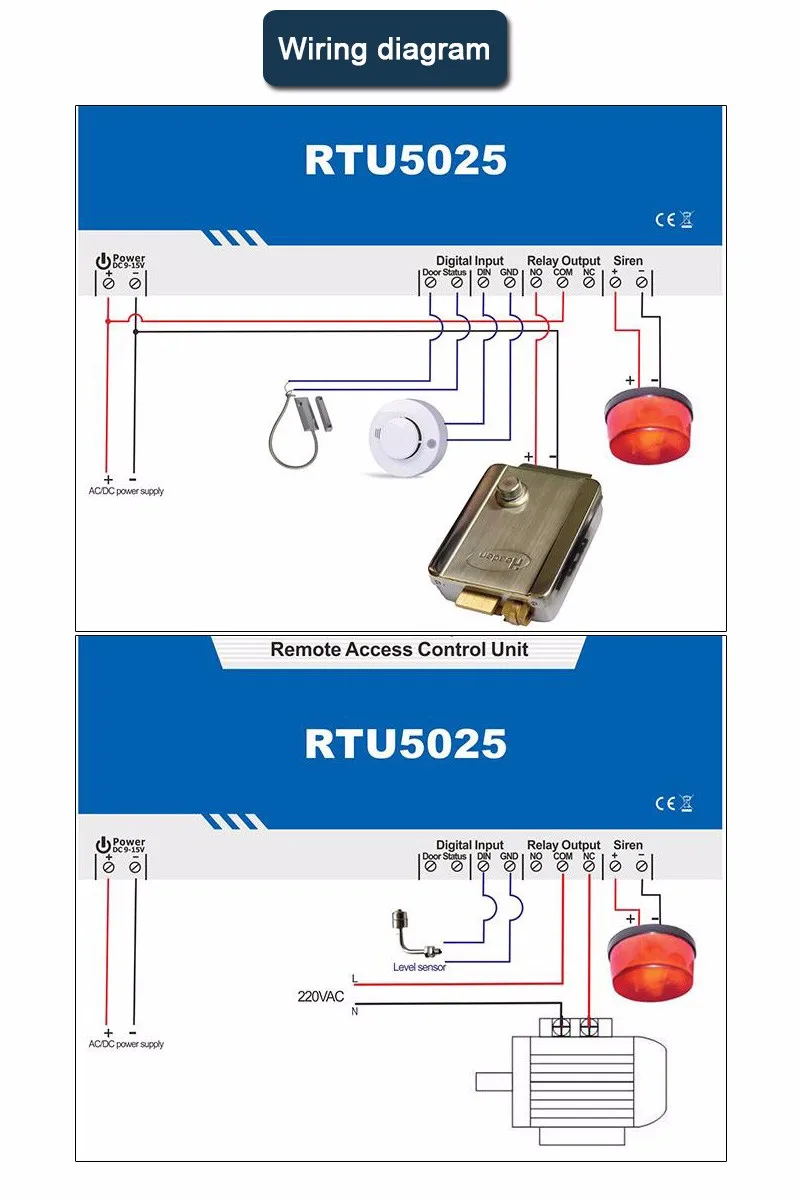

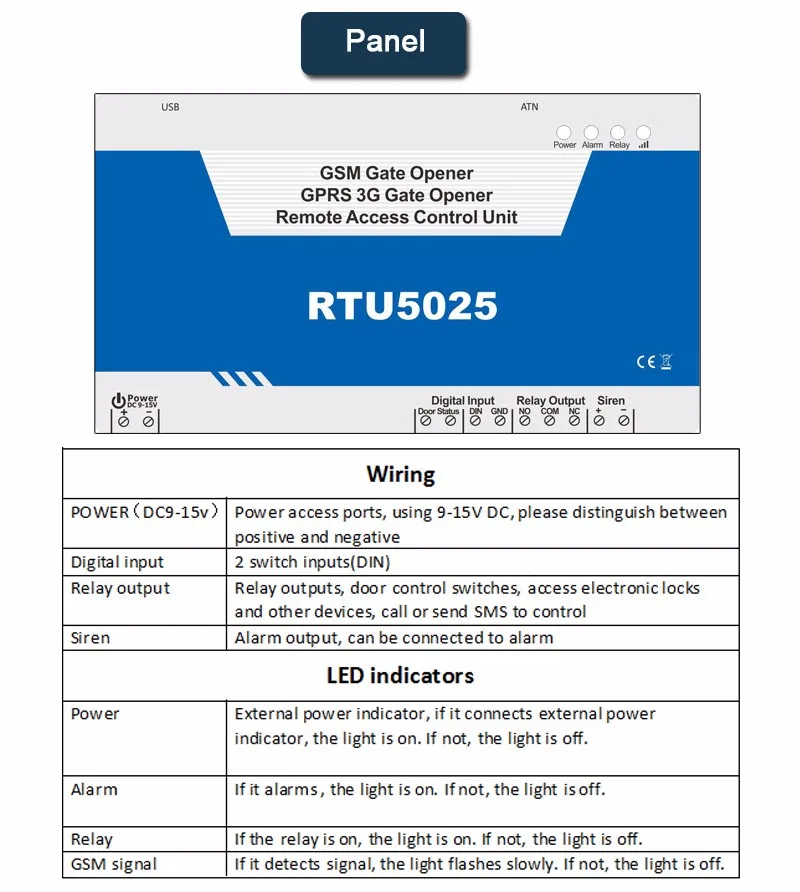

Wiring
POWER(DC9-15v): Power access ports, using 9-15V DC, please distinguish between positive and negative
Digital input: 2 switch inputs(DIN)
Relay output: Relay outputs, door control switches, access electronic locks and other devices, call or send SMS to control
Siren: Alarm output, can be connected to alarm

LED indicators
Power: External power indicator, if it connects external power indicator, the light is on. If not, the light is off.
Alarm: If it alarms , the light is on. If not, the light is off.
Relay: If the relay is on, the light is on. If not, the light is off.
GSM signal: If it detects signal, the light flashes slowly. If not, the light is off.
