Item specifics
  • Hard Drive Size: 3.5''
  • Communication Interface: RS485
  • Hard drive Interface Type: SATA
  • Audio Output: 1CH RCA
  • Video Input Interface: BNC (1.0 Vp-p, 75Ω)
  • DVR Power Consumption (W): 15W
  • Technology: AHD
  • Supported Mobile Systems: iPhone OS
  • Video Standard: PAL
  • Power Source: EU
  • Video Output: 1CH HDMI 1920X1080 60Hz
  • Supported Operating Systems: Microsoft Windows 7
  • Alarm Action: Local Alarm
  • Model Number: AVR7804LN
  • Video Resolution: 1080N
  • Brand Name: WAN LIN
  • Build-in HDD: None
  • Audio Input: 4 Channel
  • Network Interface: RJ45 10/100M
  • IP Mode: Dynamic IP address
  • Two-way Audio: No
  • Backup Type: USB Flash Divers
  • TV System: NTSC/PAL
  • Smartphone App: iOS and Android
  • Encode ability: 4*1080N/4*AHD-M
  • Local Playback: 4ch
  • Power supply: 12V/2A
  • HDD: Support 1*SATA (Max 6TB/per, NOT inclued)
  • Dimension: 250(W)x210(D)x45(H)mm
Product Description



WANLIN 4CH CCTV 1080N AHD-M DVR Hybrid DVR NVR Register Digital Video Recorder P2P Cloud Support 1080P CVBS AHD CVI TVI IP Cam





  • 1 x 4CH 1080N DVR
  • 1 x Power Adapter
  • 1 x Mouse
  • 1 x User Manual
  • 1 x Screw bag for HDD Installation

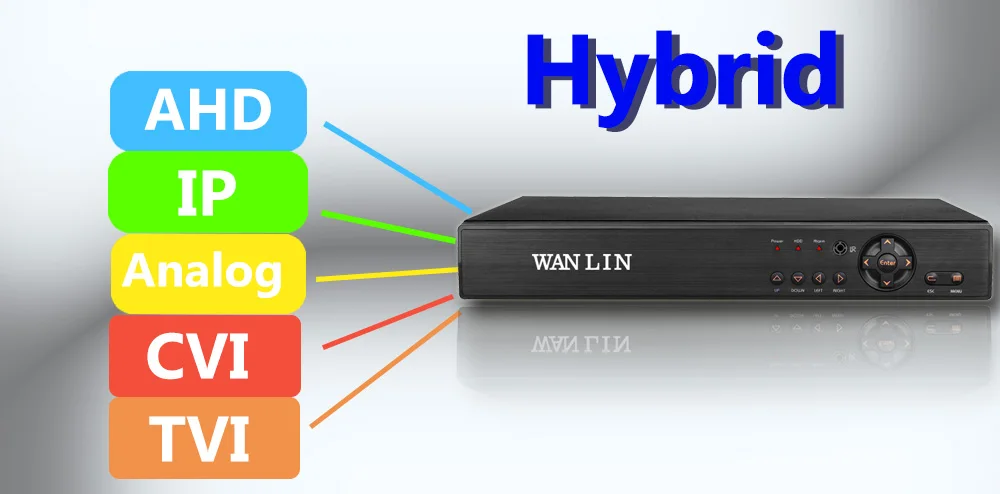

1.CVBS/AHD/TVI/CVI/IP features  5-in-1, multi-mode  input.
2.Local Playback:4CH
3.Audio input: 4CH RCA
4.Audio output: 1CH RCA
5.Support HDMI / VGA, PTZ, 1x HDD,DDR 2G
6.With USB Mouse, DC12V/2A adapter
7.P2P Cloud Technologyechnology
8.CMS, Monitor, Smartphone view.
Hybrid 5
Motion Detection



Model Number AVR7804LN
Main processor Hi3520DV200+6114A
Operator interface support 16-bit true color graphical menu interface and mouse operation
Codec H.264
Encode ability 4*1080N/4*AHD-M
Decode ability 4*1080N/4*AHD-M
Multi-mode input Analog: 4*1080N; 4*AHD-M; 4*AHD-L;
 Hybrid: 2*AHD-M(analog)+2*720P(network);
 Network only: 4*720P; 4*1080P; 8*720P; 8*1080P; 1*1080P
Motion Detection Each screen can be set to 192 (16 * 12) detection areas;   multi-level
Local Playback 4ch(local input mode)
Backup mode Network, USB hard disk, USB burner, SATA burner
Video input, output 4ch BNC/1ch VGA, 1ch HDMI
Audio input/ output 4ch RCA/1ch RCA
Network interface RJ45 10M/100M self-adaption
PTZ control 1*RS485, Support kinds of PTZ protocols
USB 2* USB 2.0 ports
HDD Support 1*SATA (Max  6TB/per, NOT inclued)
Power supply 12V/A
Power <15W (without HDD)
Working environment 86kpa—106kpa
Dimension 250(W)x210(D)x45(H)mm
Weight 0.87kg










Storage Calculating





1. Local Monitor




DVR Operation Guid (download smartphone APP by scan the QR code).




Multi - lingual



2. "CMS" on computer.


First, please download the \'CMS\' APP for computer from the by this link:




3. Web




4. iOS or Android phone
