Report item
Item specifics
  • Technology: Analog
  • Communication Interface: RS232
  • Hard Drive Size: 3.5''
  • Model Number: SAE3000-A1004N/A1108E
  • Backup Type: Hard Drive
  • Supported Operating Systems: Microsoft Windows XP
  • Hard drive Interface Type: SATA
  • Audio Output: 1CH RCA
  • Video Input Interface: BNC (1.0 Vp-p, 75Ω)
  • DVR Power Consumption (W): DC12V 2A
  • Video Resolution: 960H
  • IP Mode: Static IP address
  • Video Standard: PAL
  • Power Source: EU
  • Video Output: 1CH HDMI 1920X1080 60Hz
  • Audio Input: 1 RCA
  • Supported Mobile Systems: Android
  • Brand Name: smar
  • Build-in HDD: None
  • Alarm Action: FTP Photo
  • Network Interface: RJ45 10/100M
  • Two-way Audio: No
  • Name: Digital Video Recorder
  • Resolution: 960H/D1/1080P/960P/720P
  • Compression Format: H.264
  • Video Input: 4 Channel /8 Channel
  • Onvif/P2P: Support
  • Phone: Mobile Phone,I-PAD,I-Phone,Etc
  • Type: Hybrid DVR
  • Power: Standard EU plug (AU/UK Optional)
  • HDD: Support 1 SATA 3.5" HDD(Not include HDD)
Product Description

CCTV Mini DVR 4 Channel 1080N Digital Video Recorder 8CH 960H 15FPS Hybrid DVR  H.264 Security Surveillance P2P VGA HDMI Output





Item Description



For 4CH Hybrid DVR

Support ONVIF;

Support VGA,HDMI output.  (Don\'t Support BNC Output, Please note before you buying)

ChannelType management chart parsing:

Channel 1: Support 4*720P/960P AHD(AHDM) Camera,1CH Playback

Channel 2: Support 4*1080P AHD(AHDH) Camera(only 1080N resulotion,12fps/sec)

Channel 3: Support 4*720P/960P AHD(AHDM)Camera, 2CH Playback

Channel 4: Support 4*960H/D1 Analog Camera

Channel 5: Support 2*720P AHD Camera+2*720P IP Camera

Channel 6: Support 4*1080P IP Camera

Channel 7: Support 8*720P IP Camera

Channel 8: Support 8*960P IP Camera



9-One DVR Inputs 3 Mode 4CH



CCTV Mini DVR 4 Channel 1080N Digital Video Recorder 8CH 960H 15FPS Hybrid DVR H.264 Security Surveillance P2P VGA HDMI Output







For 8CH Hybrid DVR

Supprort ONVIF;

Support BNC,VGA,HDMI output.

Don’t support 720P/960P/1080P AHDCamera;( Please note before you buying)

Support 8*(960H)Analog Camera,Non Real-time,Only 12fps/sec; or 8*D1 Analog Camera,Real-time;

Support 2*D1 +1*1080P IP Camera+1*720P IP Camera Real time;

Support 4*720P IP Camera, or 8*720P IP Camera;

Support 4*1080P IP Camera, or 8*1080P IP Camera;

9-One DVR Inputs 2 Mode 8CH



8-8CH Hybrid DVR A1108E





AHD-Resolution mode notes:

Model

Notes

Corresponding camera

AHD-L

Resolution of about 700,000 pixels

AHD-L camera has eliminated

AHD-M

Resolution of 1 million pixels

AHD720 and 960P camera

AHD-NH

1080N 2 million interlaced

AHD1080P camera(No AHD1080N camera on the market)

AHD-H

1080P 2 million line-by-line scanning

AHD1080P camera



1.Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.

2.Supports Motion Detection and Email Notification

3.Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).

4.Browsers:Support IE.Chrome.Firefox.Safari browsers.

5.Multi-language OSD (27 kinds of languagess)

6.Perfect circuit protection, unique triple watchdog function.

7.Support 2 USB2.0 interface, to achieve USB mouse, backup, burn, upgrades and other operations stably.

8.Network:Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.

9.Support web client, standalone client

10.Support P2P cloud(xmeye.net), no need to do router mapping, just 1 step go to internet with P2P cloud technology

11.Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.

12.Main and Sub Stream:Main stream and Sub-stream encoding. Main stream for local storage,      ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem



  4CH 8CH Packing List









Packing List:



1* Mini 4 Channel/8 Channel Hybrid DVR

1* USB Mouse

1* DC12V Power Adapter(EU,AU,US,UK plug optional)

1* User Manual













Note :

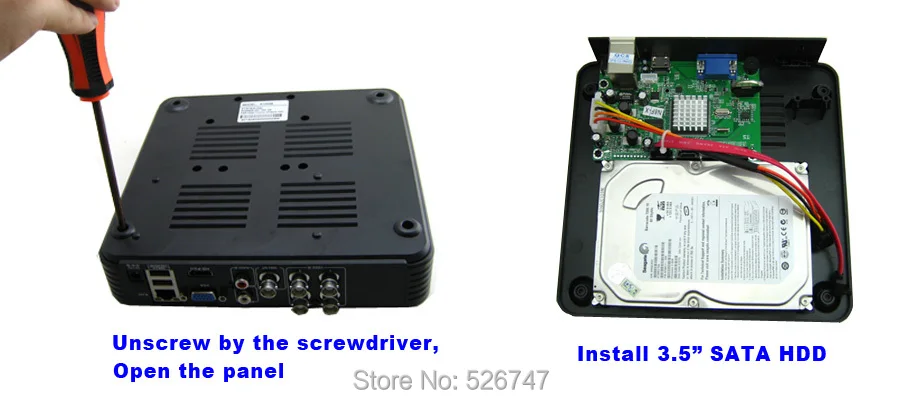

This DVR Support the 3.5\'\' HDD ,below picture is for reference ,Not include HDD in the box !



Function Display



When you are searching for standalone digital video recorder, you will see QCIF, CIF, D1, 960H parameters in every standalone DVR technical information table. CIF, D1, 960H are the recording and playback resolution for security DVR. These parameters are very important factors determined your video recording surveillance performance and resolution.



What\'s CIF ?

CIF is the abbreviation of Common Intermediate Format. CIF=360x240pixels

CIF format with follow features:

1. The resolution is suitable for video home system (VHS), with resolution 360x240pixels

2. Adopted non-interlaced scan

3. Using NTSC, play video maximum frame rate at 30 000/100129.97fps/second

4. PAL tv system, resolution reach up to 288 tv lines.

5. CIF format is an old standard for video surveillance system

What is D1 ?

In cctv system industry, everybody knows D1 is the resoltuion of recording, playback and display resolution. Actaully it\'s not ture. D1 is a digital tv system standard format, it is divided into the following categories:

D1: 480i format (525i): 720x480 (resolution 480tv lines, Interlaced), and NTSC tv system with same resolution, Line frequency 15.25kHz, the equivalent of what we call 4CIF (720 × 576).

D2: 480P format (525p), 720x480 (resolution 480tv, progressive scan), with more clear compared to the D1 interlaced, is e the equivalent of DVD resolution.

D3: 1080i format (1125i): 1920x1080 (resolution 1080 tv lines, interlaced scan), high definition video format, resolution 1920x1080i/60Hz, Line frequency 33.75kHz.

D4: 720P format (750p), 1280x720 (horizontal resolution 720 tv lines, progressive scan), a low resolution compared to D3, but with reason of progressive scan, many people feel D3 is more clear than D4, especially when display the characters, resolution 1280x720p/60Hz, line frequency 45kHz.

D5: 1080P format (1125P), 1920x1080 (horizontal resolution 1080tv lines, progressive scan), the highest standard resolution in tv system, resolution 1920x1080P/60Hz, line frequency 67.5KHz.



1-960H Hight Definition Display



6-HDMI 19201080P Output



7-Support Multiple Languages

Support Multiple Languages, has English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, polish, Hebrew, etc......



3-Advanced Motion Detection

Multiple Defense Zones Motion Detection

When subject appear in any defense zone the DVR will star recording




4-Full Scene Motion Detection

Full Scene Motion Detection

When any subject appear in the scene the DVR will star recording



5-Email Alart

Advanced Motion Detection Recording and Email Alert

When motion is detected the DVR will save the footage into hard disk without missing any important events.

You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.

DVR will send you mail automatically if there is any motion detected.

Please note: SMTP Server only support these Email Box:126, 163, gmail, sina, 139, 156, qq format,

And the recipient can set up 5 valid mail.

Mail Testing: Test Message ent success.(It’s OK)

Mail Testing: Failed to connect to server. (It’s failure)

Set Email



PC & Smartphone Remote View

Anytime, Anywhere...Using the latest network technology, plug and play,  you can remote view via smart phones, tablets, notebook or PC.

2-Remote View Very Easy Via Cloud Technology

Website Interface Via IE

Please login your Google or IE or Firefox browser,

Then input default address 192.168.1.10 in your browser

Username:amdin

Password:null (empty)

Remind: If you use the software first time, you need to install a plugin in your computer.

3-Website Interface Via IE



P2P Via Cloud XMEYE.NET

If you want to remote view thourh Internet

Please login your Google or IE or Firefox browser

Then input Website of P2P Cloud: www.xmeye.net

Input your P2P ID, and your password, login in.

4-P2P Via Cloud XMEYE.NET









How to remote view through Mobile phone?

1. You must be installed a APP in your mobile phone,where to find or download APP?

2. Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)

5-Mobile Monitoring With APP XMEYE





9-Analog CameraDVR Connection Diagram 4CH

Analog  IPC connect to AHD DVR
